Lithium-Ion vs Lead-Acid battery

Lithium-Ion vs Lead-Acid battery

To make the comparison, we will take a Lead acid 12V battery and a PowerBrick 100 with Lithium-Iron-Phosphate technology

  • 12V Lead-acid battery from Trojan, Deep-Cycle Reliant™ AGM : Trojan 1275-AGM.

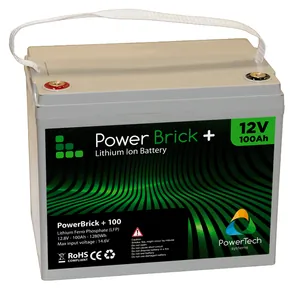

  • 12V Lithium-Iron-Phosphate : modèle PowerBrick+ 100 from PowerTech Systems
POWERBRICK Lithium-Ion Battery vs conventional LEad acid battery
TROJAN T1275-AGMPOWERBRICK 100
T-1275AGM

TROJAN 1275 AGM Deep Cycle

PowerBrick 12V - 100Ah - Lithium Ion

PowerBrick 12V – 100Ah – LFP

Length : 329mm
Width : 179mm
Height : 278mm
Length : 260mm
Width : 168mm
Height : 212mm
77% smaller
Weight : 40kgWeight : 13.6kg
194% lighter
[email protected]: 80Ah
Capacity @ C1 : 100Ah
Capacity @ C5 : 119Ah
[email protected]100Ah
Capacity @ C1 : 100Ah
Capacity @ C5 : 100Ah
Constant Power
and Energy
500 cycles @ 80% DoD
800 cycles @ 55% DoD
3000 cycles @ 80% DoD
8000 cycles @ 55% DoD
Cycle Life
6x to 10x greater
