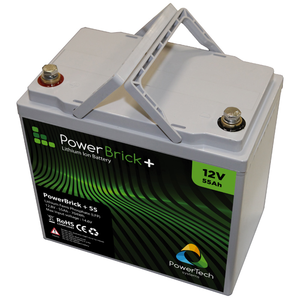

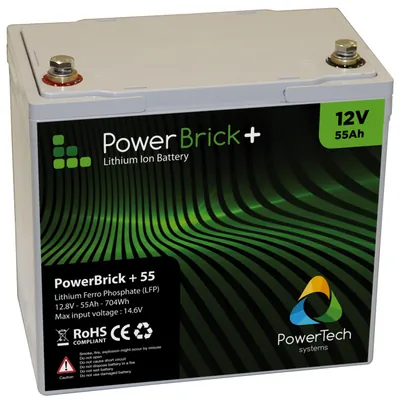

55Ah - 12V Lithium-Ion Battery Pack

PowerBrick+ Lithium-Ion battery pack offer a high level of security through the use of cylindrical cells Lithium Iron Phosphate (LiFePO4) and a built-in BMS.
PowerBrick+ product line is designed to advantageously replace lead batteries, offering more than doubled capacity and twice lower weight.

Each battery has a 12V nominal voltage and can be assembled in series (up to 4 items) or/and parallel (up to 10 items). Operating voltage can then be set to 12V, 24V, 36V or 48V.

The battery is enclosed in a sealed ABS case, resistant to moisture and dust (IP66).

PowerBrick+ battery systems are lightweight, reliable and environmentally-friendly solutions for multiple usages. These batteries can take place as a direct drop-in replacement of old-fashion and low-performance Lead Acid batteries (VRLA, AGM, etc.).

The PowerBrick+ product line is covered in standard by a 2 years commercial warranty. This warranty can be extendable to 5 full years.

2 years warranty
5 years warranty

Key Points

    • 12V battery pack – Lithium Iron Phosphate (LFP)
    • Stored Energy : 0.704kWh

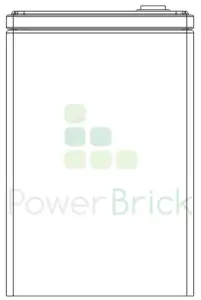

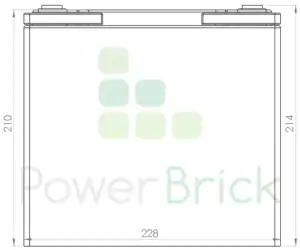

    • Dimensions : 228mm x 138mm x 210 mm
    • Weight : 7.8 Kg
    • Continuous discharge current : 80A (1.02 kW)
    • Peak discharge current : 120A (<30s)
    • Maximum charge current : 55A
    • High safety with advanced Built-in Battery Management System
    • Monitoring of cell and PCB temperature, current, voltage, SOC
    • Serial assembly can range from 12V to 48V (1 to 4 items in series)
    • Parallel assembly up to 10 items (12V-550Ah / 10.24kWh)
    • Minimum 3000 cycles at 80% DOD (see chart tab)
    • Robust design in an isolated and waterproof casing (IP66)
    • Operating temperature in charge : 0°C à +60°C
    • Operating temperature in discharge: -15°C à +60°C
    • Sealed case (IP66 protection)
    • 100% Maintenance free
    • CE, RoHS and UN38.3 certification

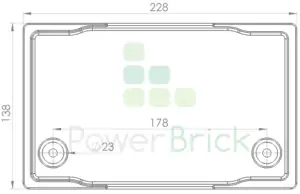

    • L : 228mm x P : 138mm x H : 210 mm
    • 7.8Kg
    • 2 years commercial warranty as standard, extendable to 5 years
    2 years warranty
    5 years warranty

Frequently Asked Questions

How safe are Lithium-Ion PowerBrick+ batteries ?
PowerBrick+ batteries are using Lithium Iron Phosphate chemistry (LFP) that is one of the most safe Lithium-Ion technology. This chemistry is not subject to thermal runaway, is non-flammable and is considered as non-hazardous by international regulation standards.

Each battery is fitted with a high quality Battery Management System (BMS) that ensure a safeguard role during battery operation. The BMS is designed to deliver high power in complete safety for a very large spectrum of applications,
What can i use PowerBrick+ battery for ?
PowerBrick+ batteries are commonly used for Marine, Recreational vehicles, Golf Cart applications, CCTV, robotics, PV energy storage, etc..

PowerBrick+ Battery can be used for any system or application that would normally use Lead acid battery (AGM, GEL) in 12V, up to 48V. After removing your old batteries, place PowerBrick+ batterie in the same way.

You may use the same cables to reconnect PowerBrick+ battery.
Do i need to recharge battery immediately after operation ?
PowerBrick+ batteries can be partially charged or discharged unlike Lead Acid batteries that needs to be fully charged after use or before storage.

For instance, you can leave your battery half charged for some weeks without any issue.

If you plan to store battery for a long period (> 2 month), you need to charge battery at minimum 25% of SoC (State of Charge) before storage. It is necessary to check battery voltage every 6 month during storage.
How do I charge a PowerBrick+ Lithium-ion battery ?
PowerBrick+ lithium ion technology uses the latest and most advanced built-in battery management system (BMS) to monitor and prevent damage to the battery during use.

You may utilize a Lead-acid charger with PowerBrick, but some customers prefers using a Lithium charger to keep a better lifespan.

Several charging sources are possible:
  • Alternator: Most alternators (marine, RV, cars) will efficiently charge PowerBrick+ lithium ion technology as soon alternator charge voltage is between 14.0V and 14.8V
  • Conventional Lead-Acid battery charger: PowerBrick+ Battery Management System (BMS) is designed to be compatible with standard chargers. You need to check that charger has a built-in CC/CV charge algorithm (Constant Current / Constant Voltage) and charger maximum voltage is comprised between 14.0V and 14.8V
  • Lithium-Ion charger: This is the best way to charge PowerBrick+ Lithium-ion battery. These chargers embeds some dedicated charge algorithm with precise charge voltage. It also manage efficiently charge floating voltage and duration in order to maximize battery life span.
How long does a PowerBrick+ battery last ?
PowerBrick+ advanced lithium-ion technology will provide you with 3000 complete charge and discharge cycles at 80% DoD (Depth of Discharge). After 3000 cycles, you will still have over 80% of usable energy left.

In case you discharge PowerBrick+ at 65% DoD rate, you can expect to get 5000 cycles.
  • Example 1: One PowerBrick+ 12V-100Ah battery, after being discharged at 80% DoD for 3000 cycles, is now a 12v 80ah battery.
  • Example 2: One PowerBrick+ 12V-100Ah, after being discharged at 65% DoD for 5000 cycles, is now also a 12v 80ah battery.
In term of time duration, If you discharge 80% of the PowerBrick+ and then recharge it every day, 7 days a week for height years, you will still have 80% of usable battery energy left.

This is a large improvement in lifespan compared to a conventional Lead Acid battery (AGM, Gel) rated at 500 cycles for 50% DoD cycles.
What is the Battery Management System (BMS) and how does it work ?
Each PowerBrick+ embeds a built-in BMS. This BMS is a high-tech design that manage two main aspects of battery during operation :Protection features :
  • Low Voltage Protection Switch – Automatically disconnects at 10.0V
  • Over Voltage Protection Switch – Automatically disconnects at 15.0V
  • Short Circuit Protection Switch – Automatically and safely disconnects battery
  • Reverse Polarity Protection Switch – Automatically and safely disconnects battery
  • Over temperature – Automatically shut-down battery until normal temperature recovery
Balancing features :
  • Internal cell balancing – Automatically balances PowerBrick+ cells during battery operation. Balancing algorithm has been developed to ensure perfect balance between cells throughout battery life.
  • Charge Balancing – for PowerBrick+ connected in parallel and/or in series, the BMS will balance each PowerBrick+ independently, in order to provide a constantly balanced battery system.
